Introduction
Certain maintenance tasks are performed only when conditions require them, and cleaning the UV-VIS detector is one of the most important examples. Over time, contamination, deposits or air-bubbles can affect optical performance and compromise signal quality. This article outlines Metrohm's recommended as needed maintenance procedure for cleaning a UV-VIS detector on an ion chromatography system, explaining when cleaning is warranted and how proper handling helps restore detector performance, protect sensitive components, and ensure reliable analytical results.
Note: To open the measuring cell, you will need a slotted screwdriver size 5. Seals part number: 6.2764.000.
Removing the Flow-Through Cell
- Disconnect the inlet capillary and outlet capillary.
- Loosen the knurled screws and remove them.
- Remove the flow-through cell from the cell holder.
Removing the Lens

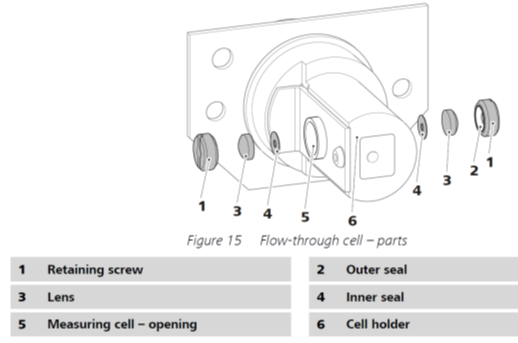

- Loosen the retaining screw (15-1) with a slotted screwdriver size 5 and remove it.
- Remove the seal from the inside of the retaining screw (15-2).
- Carefully remove the lens (15-3) and the inner seal (15-4) from the measuring cell.
- Put the lens onto a white paper. This allows you to see possible deposits.
Cleaning the Lens
- Clean the lens with ultrapure water, methanol or another suitable solvent (depending on the application) and wipe with a lint-free cloth.
- Rinse again with ultrapure water and dry with a lint-free cloth.
Re-inserting the Lens
- Insert a new inner seal (15-4) into the measuring cell, making sure that it lies flat and centered in the recess of the measuring cell.
- Insert the lens (15-3) with its flat side into the measuring cell, making sure that it lies flat and centered in the recess of the measuring cell.
- Inset a new outer seal (15-2).
- Insert the retaining screw (15-1) and tighten it with a slotted screwdriver size 5.
Additional Support
If you encounter any issues or need additional help, please submit a support ticket through Metrohm Technical Support.
