Types of Titrations

Acid–base titrations are typically characterized by very rapid reaction kinetics, as proton transfer between acids and bases occurs almost instantaneously once the titrant is added. In systems containing multiple acidic or basic species, the strongest acid or base is always neutralized first, since it reacts most completely and at the lowest titrant volume. For a strong acid–strong base titration, the resulting titration curve is symmetrical and features a sharp, well-defined equivalence point centered around neutral pH.

In contrast, when titrating a weak acid with a strong base, or a weak base with a strong acid, the curve becomes less steep, and the potential or pH jump at the equivalence point is smaller. This is due to the incomplete dissociation of the weak species and the presence of buffering effects, which dampen the change in pH near equivalence. Throughout these titrations, a combined pH glass electrode is commonly used to monitor the change in potential, providing accurate and continuous measurement of pH as the reaction progresses.

Acid-Base Titrations (Non-Aqueous)

Non-aqueous acid–base titrations are used when samples are poorly soluble in water or when water would interfere with the chemistry of the analysis. This is particularly important for materials such as fats, oils, lubricants, and petroleum products, where measurements like Total Acid Number (TAN) and Total Base Number (TBN) are critical quality and performance indicators. In these systems, the organic solvent must dissolve the sample effectively without reacting with it or altering the species being measured.

Common titrants include perchloric acid (HClO₄) in glacial acetic acid for the determination of basic components, and potassium hydroxide (KOH) in isopropanol for acidic constituents. Because these titrations occur in non-aqueous media, specialized electrodes such as a Solvotrode are used to ensure stable and reliable potential measurement. Appropriate supporting electrolytes, such as lithium chloride (LiCl) in ethanol or tetraethylammonium bromide (TEABr) in ethylene glycol, are employed to enhance conductivity and maintain consistent electrode performance throughout the titration.

Precipitation Titrations

Precipitation titrations are based on the formation of a sparingly soluble compound when the analyte reacts with a suitable titrant. As the titrant is added, the target ion in the sample is precipitated out of solution in a well-defined stoichiometric reaction. The progress of the titration is monitored using an electrode that responds either to the remaining analyte or to the excess titrant, such as a silver electrode (Ag Titrode) or a selective ion electrode (ISE), depending on the system being analyzed.

To ensure accurate results, interfering ions that could also form precipitates must be masked or otherwise controlled to prevent side reactions. In some cases, the addition of organic solubility promoters, such as acetone or ethanol, can reduce the solubility of the precipitate and thereby improve sensitivity and lower the detection limit. Common titrants used in precipitation titrations include silver nitrate (AgNO₃), lanthanum nitrate (La(NO₃)₃), and barium chloride (BaCl₂), among others. These titrations typically produce symmetrical titration curves with a distinct and well-defined equivalence point, reflecting the sharp change in ion concentration as precipitation reaches completion.

Ionic Surfactant Titrations

Ionic surfactant titrations are based on the formation of ion pairs between oppositely charged surfactant species. For anionic surfactants, a cationic surfactant is used as the titrant, while cationic surfactants are titrated with an anionic surfactant solution. As the oppositely charged molecules interact, they form electrically neutral ion pairs, leading to a measurable change in potential at the equivalence point.

Maintaining the optimal pH range is critical in these titrations, as pH can influence the charge state and behavior of the surfactant molecules, directly affecting reaction completeness and endpoint detection. Measurement is typically performed using a specialized surfactant-sensitive electrode, commonly referred to as a Surfactrode. Also commonly used is a double junction reference electrode equipped with a sleeve diaphragm. These configurations help minimize contamination and ensures stable, reliable potential measurements throughout the titration.

Non-Ionic Surfactant Titrations

Nonionic surfactant (NIO) titrations require a modified approach, as these compounds do not naturally react with anionic or cationic surfactants due to their lack of charge. To enable titration, the nonionic surfactant is first converted into a pseudo-ionic form. This is typically achieved by the addition of barium ions, which form complexes with polyoxyethylene (POE)-based nonionic surfactants, effectively introducing a measurable charge characteristic. Once converted, the surfactant can be titrated using sodium tetraphenylborate (NaTPB) as the titrant.

Because the reaction between the titrant and the modified nonionic surfactant is not strictly stoichiometric, accurate quantification requires the determination of a calibration factor. This is commonly established using well-defined standards such as Triton X-100 or polyethylene glycol (PEG 1000), ensuring reliable and reproducible results despite the non-stoichiometric nature of the system.

Redox Titrations

Redox titrations are based on electron transfer reactions, where oxidation involves the donation of electrons and reduction involves their acceptance. During the titration, the measured electrode potential reflects the ratio of oxidized to reduced species and changes logarithmically with concentration, similar in behavior to the pH response observed in acid–base titrations. Common examples include iodine–thiosulfate systems, bromine index determinations, and hydrogen peroxide (H₂O₂) analysis. These titrations are most often carried out under acidic conditions to ensure reaction completeness and stability of the redox couple.

Redox systems typically exhibit large and distinct potential jumps at the equivalence point, providing clear endpoint detection. However, dissolved oxygen can interfere by participating in side reactions, so titrations are often performed under an inert gas atmosphere such as nitrogen (N₂) or carbon dioxide (CO₂). Measurement is conducted using platinum-based indicator electrodes, such as a Pt Titrode or a combined platinum ring electrode, or a double platinum sheet electrode to ensure stable and reproducible potential readings.

Complexometric Titrations

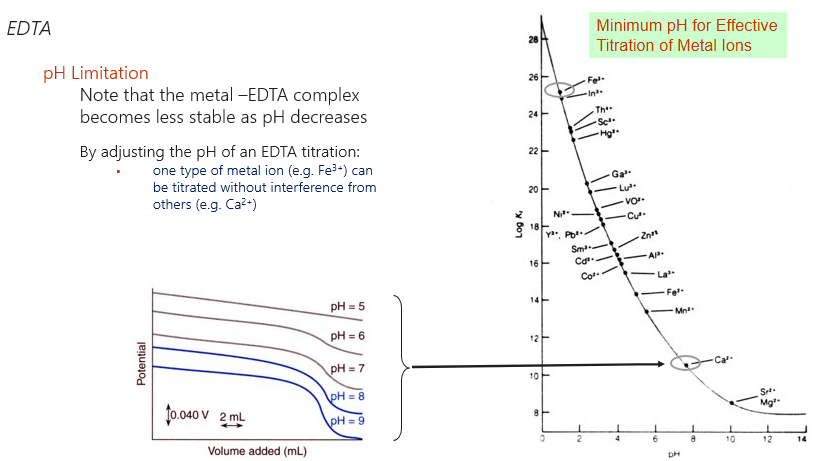

Complexometric titrations are based on the formation of stable coordination complexes, most commonly between metal ions and a chelating agent such as EDTA. In many cases, the reaction proceeds in a 1:1 stoichiometric ratio, where one ligand molecule binds one metal ion to form a highly stable complex. The stability of these complexes, expressed as formation constants, is strongly dependent on pH. As a result, complexometric titrations are typically performed in carefully buffered solutions, often with the addition of auxiliary complexing agents to control reaction conditions and ensure selectivity.

Interfering metal ions can compete with the target analyte and must be masked when possible to prevent inaccurate results. Depending on the application, the titration may be performed directly, where the analyte reacts immediately with the titrant, or as a back titration, in which an excess of EDTA is added and the remaining unreacted portion is subsequently determined. Endpoint detection can be achieved either potentiometrically, using suitable electrodes, or photometrically, through color changes of metal–indicator complexes. Common applications include the determination of water hardness through calcium and magnesium analysis, as well as the quantification of various heavy metals in environmental and industrial samples.
