Introduction
Potentiometric titration is built on a simple but powerful idea: chemical change can be tracked through electrical potential. At the heart of this technique are electrodes, the quiet translators that convert ionic activity in solution into a measurable voltage.
Understanding electrode theory provides the foundation for interpreting titration curves, recognizing equivalence points, and troubleshooting unexpected results. From the role of the reference electrode in maintaining a stable potential to the selective response of the measuring electrode, each component contributes to the accuracy and reliability of the measurement.
Potentiometric Electrodes
A potentiometric electrode is an electrochemical sensor that generates a measurable voltage dependent, in a logarithmic relationship, on the concentration of a specific substance in solution. This response is described by the Nernst equation, which links electrode potential to ion activity. Ion-selective electrodes (ISEs) are designed to respond selectively to particular ions, such as hydrogen ions in pH electrodes, or other species including fluoride, chloride, copper, lead, and certain surfactants. In addition to ISEs, redox electrodes are used to monitor oxidation-reduction reactions by measuring changes in electron activity, while metal electrodes, such as silver or platinum, serve as indicator electrodes in specific titration systems. Together, these electrode types enable precise monitoring of chemical changes during potentiometric titrations.
Potentiometric Measurement

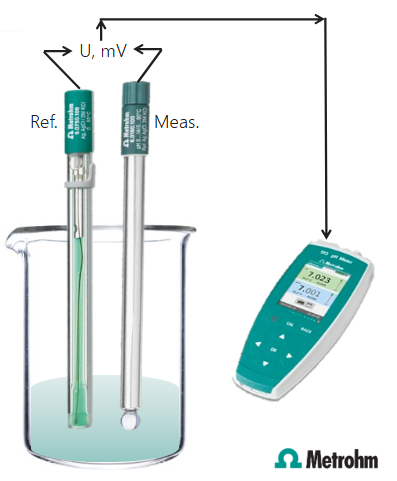

Potentiometric measurement is based on the determination of potential differences between two electrodes immersed in a sample solution. For every potentiometric measurement, two electrodes are required: a measuring electrode (ME), also called the indicator electrode, and a reference electrode (RE). The measuring electrode develops a potential that depends on the composition of the sample solution, responding selectively to the analyte of interest.
In contrast, the reference electrode provides a stable, constant potential that is as independent as possible from the sample itself. Together, these electrodes are connected to a high-impedance pH or millivolt meter, which measures the voltage difference between them without drawing significant current. This potential difference reflects changes in analyte activity and forms the basis of quantitative analysis in potentiometric titrations.
Combined Electrodes

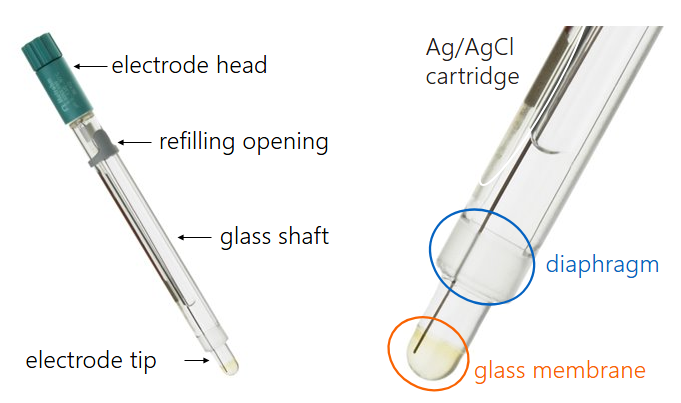

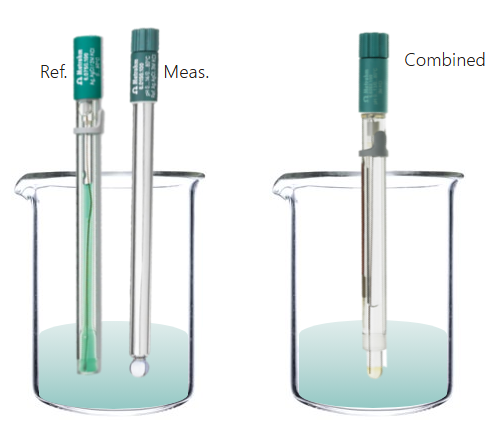

A combined electrode integrates both the measuring and reference electrodes into a single, convenient assembly. Its main components include the electrode head, which houses the electronic connections; a glass shaft that protects the internal elements; a refilling opening that allows the electrolyte to be replenished or exchanged; and the electrode tip, which is the sensitive portion immersed in the sample. The tip itself contains two critical elements: the diaphragm, which functions as part of the reference electrode by providing ionic contact with the sample, and the glass membrane, which serves as the selective component of the measuring electrode. Many combined electrodes also incorporate a silver/silver chloride cartridge, often referred to as a “long life” system, designed to provide stable potential and extended operational performance.
Membrane Layers

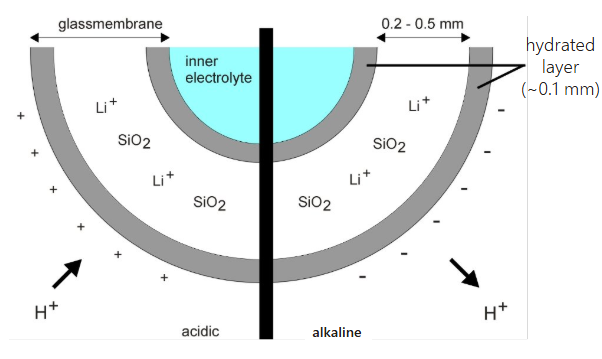

The ion-sensitive portion of a glass electrode is constructed from a specially formulated glass that forms two extremely thin, gel-like hydrated layers approximately 0.1 mm thick on its surface. The outer gel layer comes into direct contact with the sample solution, while the inner layer is in contact with a defined internal buffer solution of constant pH. When the electrode is immersed in a sample, hydrogen ions either diffuse into or out of the outer gel layer depending on the solution’s acidity. In alkaline solutions, hydrogen ions diffuse out, leaving a negative charge on the outer surface. Because the internal buffer maintains a constant pH, the potential at the inner membrane surface remains stable. The total membrane potential measured during analysis is therefore the result of the charge difference between the inner and outer layers. These hydrated layers are essential for proper function but can be damaged in corrosive media, organic solvents, or fluoride-containing solutions.
Glass membranes are manufactured in several forms to suit different applications, including ball shapes for large surface area measurements such as non-aqueous samples or low ion concentrations; half-ball designs for routine, less demanding samples; cylindrical forms that also offer a large surface area and allow automated manufacturing when glass properties permit; needle or spearhead designs for direct measurement in semi-solid samples like fruit or cheese; micro-cylinders for very small sample volumes; and flat membranes for surface measurements or minimal sample quantities.
Reference Diaphragm

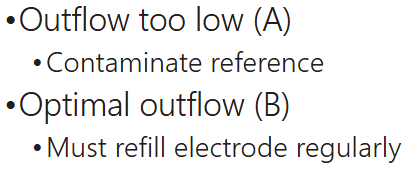

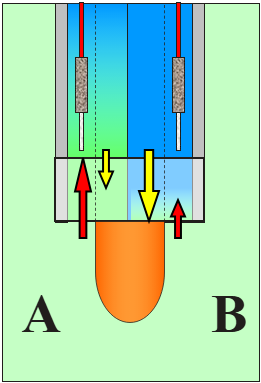

The reference diaphragm plays a critical role in ensuring stable and reliable potentiometric measurements. Its function is to maintain contact between the internal electrolyte solution and the sample by allowing a constant, controlled outflow of electrolyte into the sample solution. This outflow occurs due to simple hydrostatic pressure, governed by gravity and equilibrium, and requires that the electrode’s fill port remain open during measurement. If the outflow is too low, the reference system can become contaminated by sample components diffusing back into the electrode, compromising stability and accuracy. An optimal outflow, however, maintains proper ionic contact while protecting the integrity of the reference system. For this reason, regularly refilling the electrode and keeping it properly maintained is essential to ensure consistent performance and long electrode life.
The pH Effect

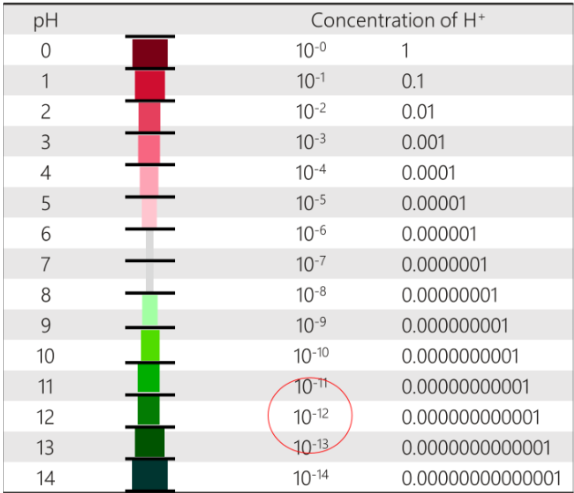

The pH scale ranges from 0 to 14 and reflects the concentration of hydrogen ions in solution, with lower pH values corresponding to higher H⁺ concentrations and higher pH values indicating very low H⁺ concentrations. As the pH increases toward the alkaline range, the number of hydrogen ions present becomes extremely small. Because glass electrodes respond to hydrogen ion activity, this low concentration makes accurate measurement more challenging at high pH. The reduced availability of H⁺ ions can result in slower response times, greater susceptibility to interference, and increased measurement uncertainty, making careful technique and proper electrode condition especially important in strongly alkaline solutions.
