Introduction
Determination files in Viva contain the full configuration of an electrochemical method, including parameters, evaluation settings, and calculation formulas. Exporting these files allows you to back up your methods, share them with other users or instruments, or transfer configurations between systems. This guide walks through the process of exporting determination files from Viva so they can be safely stored, shared or imported into another installation.
Procedure
1. Navigate to the database window of Viva.
2. If a database is already open, proceed to step 3. If not, navigate to File → Open then select a database.
3. On the toolbar, locate Tools → Templates → Export Templates.
4. A window of export templates will appear on the screen. At the bottom left, select “New”.

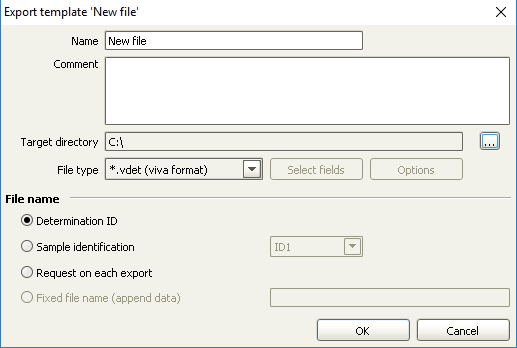

5. The following screen will show up. Fill in the “Name” and “Target Directory” fields.
6. Select the file type as *.vdet (VIVA format).
7. Click OK.
8. In the determinations overview, select the determinations you want to export.

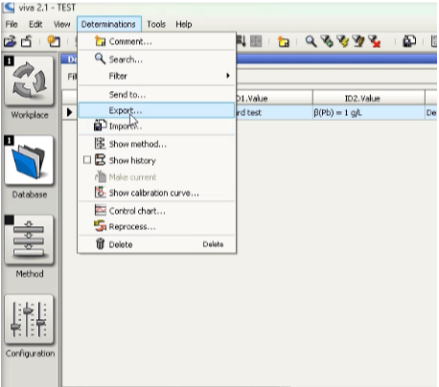

9. From the top menu bar, click Determinations → Export.

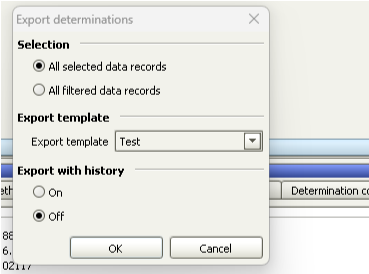

10. Select the export template you wish to use. Click OK.
11. If you are emailing several determinations for technical support, zip the files into one folder for easier communication.
Additional Support
If you encounter any issues or need additional help, please submit a support ticket through Metrohm Technical Support.
For additional training on any of these topics, explore our Metrohm Custom Training options.
