Introduction
This article introduces the basic principles of NIR spectroscopy, including how spectra are generated, what information they contain, and how different measurement approaches are applied. Whether used for identifying materials, quantifying components, or verifying product quality, NIRS is a versatile tool that supports efficient and reliable analysis across many industries.
Electromagnetic Spectrum
Understanding the Electromagnetic Spectrum and NIR Spectroscopy

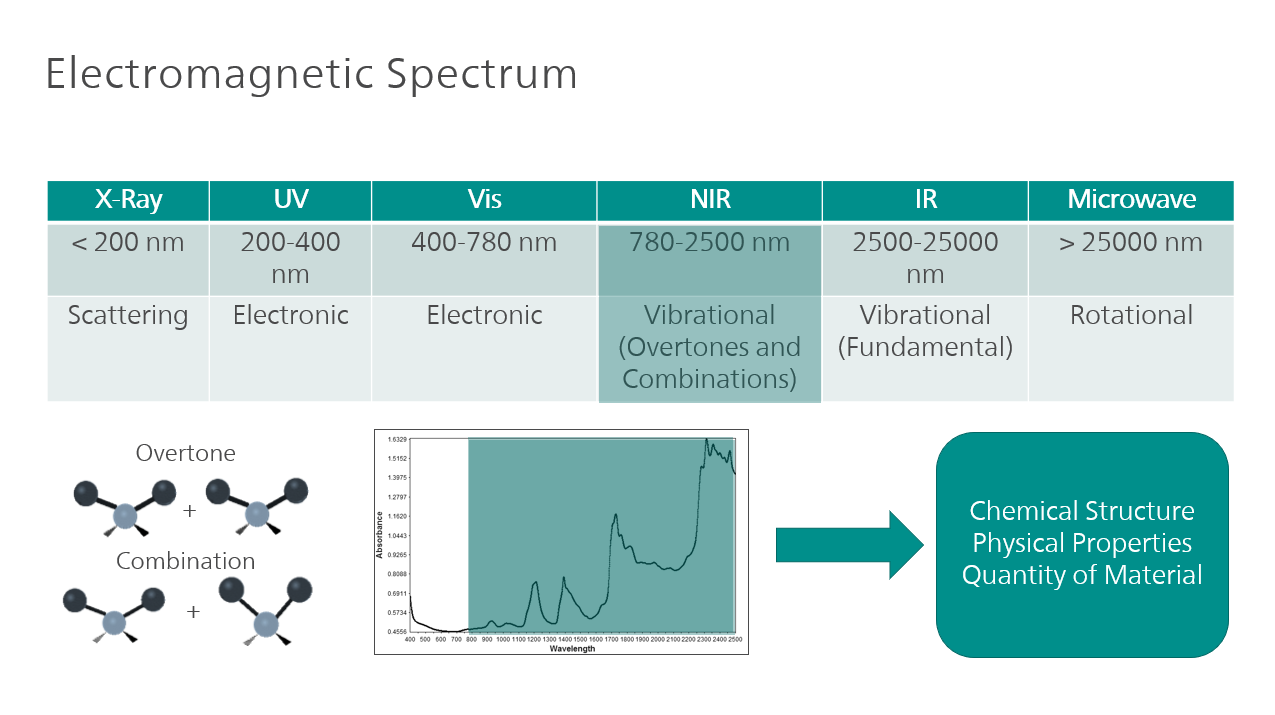

The electromagnetic spectrum is a continuous range of energy that spans from very short wavelengths, like X-rays, to very long wavelengths, like microwaves. Each region of the spectrum interacts with matter in different ways. For example, ultraviolet (UV) and visible light primarily cause electronic transitions, while infrared (IR) light interacts with molecular vibrations.
Near-Infrared (NIR) spectroscopy sits between the visible and mid-infrared regions, typically covering wavelengths from about 780 to 2500 nm. Unlike IR, which measures fundamental molecular vibrations, NIR detects more subtle vibrational features. These arise from overtones and combination bands, which are weaker but still highly informative.
Overtone vs. Combination Vibrations
In NIR spectroscopy, the signals we observe come mainly from two types of vibrational transitions:
Overtone vibrations occur when a molecule absorbs energy and moves to a higher vibrational state beyond the fundamental level. Instead of a simple “one-step” vibration, the molecule essentially skips to a higher-energy multiple of that vibration. These overtones are less intense than fundamental vibrations but still provide valuable chemical information.
Combination vibrations happen when two or more different vibrational modes are excited at the same time. Rather than a single bond stretching or bending, multiple motions combine, producing a unique spectral signal. These combination bands add complexity to NIR spectra but also increase the amount of information available.
Why This Matters
Although NIR signals are weaker and more complex than those in the IR region, they are incredibly useful. NIR spectroscopy allows for rapid, non-destructive analysis of materials and is widely used to determine chemical composition, physical properties, and even the quantity of substances in a sample.
Theoretical NIR Absorption Bands

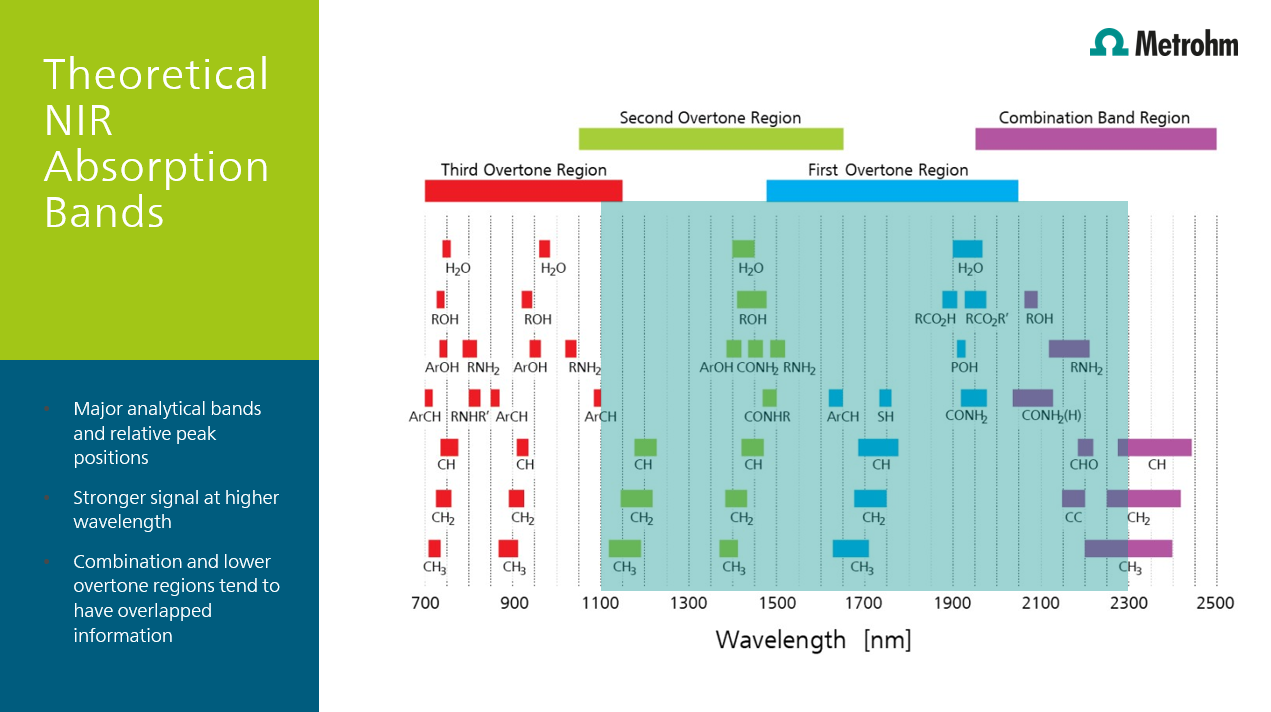

This slide below maps out where key absorption features appear across the Near-Infrared (NIR) region and how they relate to different molecular vibrations. The NIR range is divided into regions dominated by third, second, and first overtones, followed by the combination band region at longer wavelengths. As you move from shorter to longer wavelengths, the signals generally become stronger and broader. Early regions (around 700–1100 nm) contain higher-order overtones, which are weaker and more isolated. In contrast, the first overtone and combination regions (roughly 1400–2500 nm) show stronger absorption but also more overlap between signals.
The slide also highlights where common chemical groups such as O–H, N–H, and C–H bonds absorb within these regions. Lower overtones and combination bands tend to cluster together, meaning multiple functional groups can contribute to the same spectral area. While this overlap can make interpretation more complex, it also allows NIR spectroscopy to capture a broad picture of a sample’s composition. This is why NIR is so powerful for applications like material identification and quantitative analysis: even though the signals are less distinct than in IR, they contain rich, multi-layered information about chemical structure and physical properties.
Measuring Principle - NIR Spectroscopy

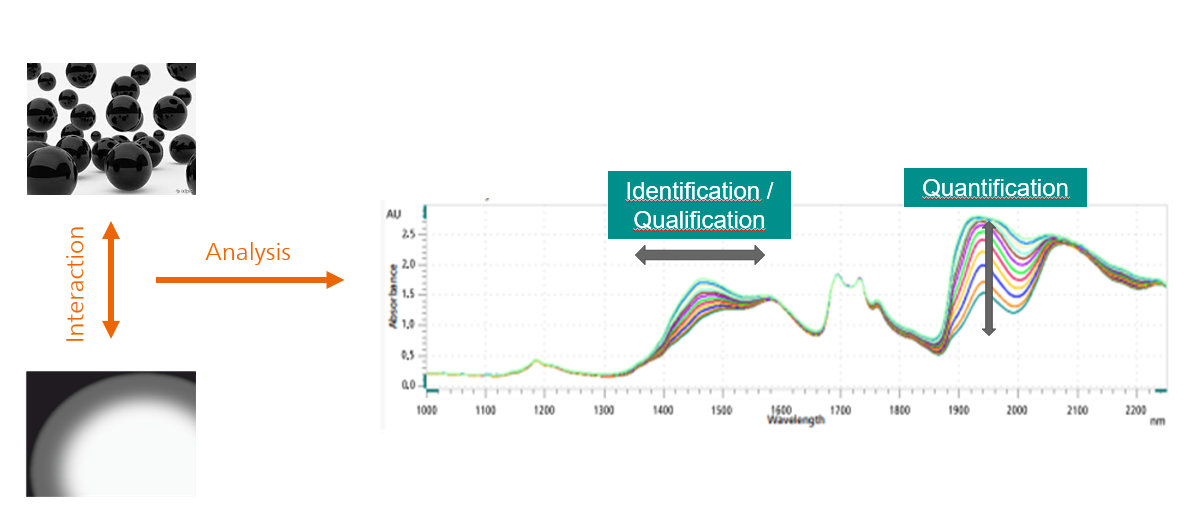

At its core, spectroscopy is the study of how light interacts with matter. In Near-Infrared (NIR) spectroscopy, a sample is exposed to light in the visible and near-infrared range, and the instrument measures how much of that light is absorbed or reflected. The result is a spectrum—a kind of molecular “fingerprint” that captures how the sample responds across different wavelengths. Each spectrum is shaped by the unique composition and structure of the material being measured.
What makes NIR especially powerful is that a single spectrum contains multiple layers of information. Different chemical bonds, such as O–H, N–H, and C–H, contribute to the overall signal, allowing for identification of the material. At the same time, physical properties like particle size, density, and moisture content also influence how light interacts with the sample. Because both chemical and physical characteristics affect the spectrum, NIR spectroscopy can be used not only to identify substances but also to quantify key parameters. With the right calibration, this enables fast, non-destructive analysis of composition and material properties in a single measurement.

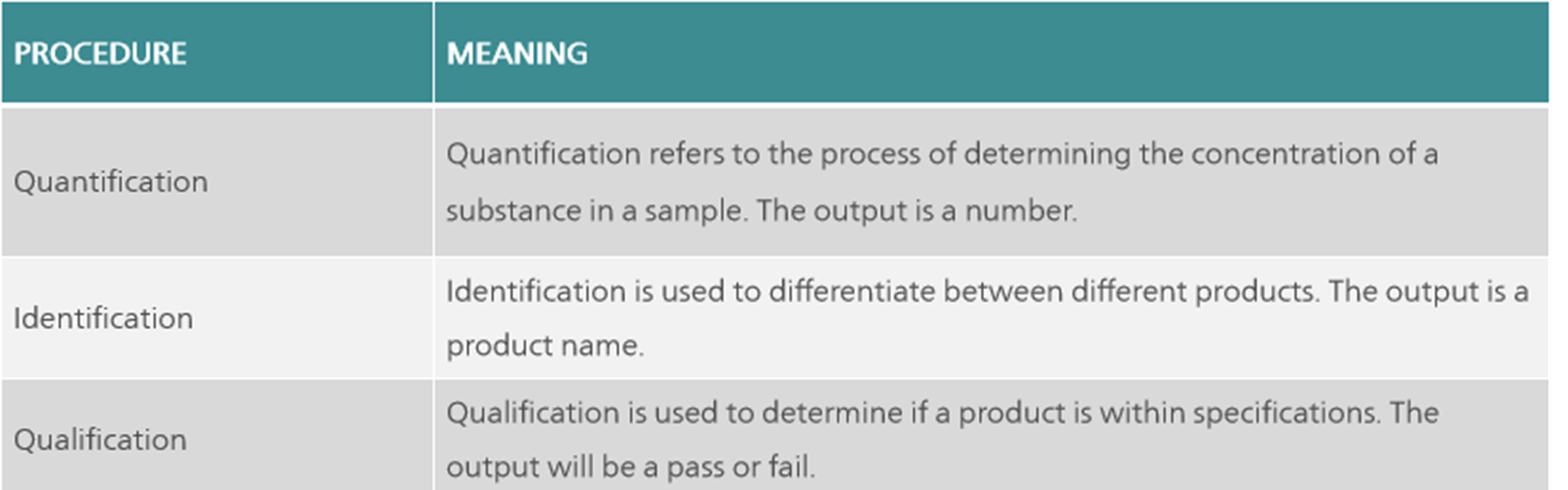

In NIR spectroscopy, results can be used in three key ways: quantification, identification, and qualification, each serving a distinct purpose. Quantification focuses on measuring how much of a substance is present in a sample, producing a numerical result such as concentration or percentage. Identification, on the other hand, is used to determine what the material is by comparing its spectral fingerprint to known references, resulting in a product or compound name. Qualification takes things a step further by assessing whether a sample meets predefined criteria or specifications, delivering a simple pass/fail outcome. Together, these approaches allow NIR spectroscopy to not only measure and identify materials but also ensure they meet required quality standards.
Detection Methods

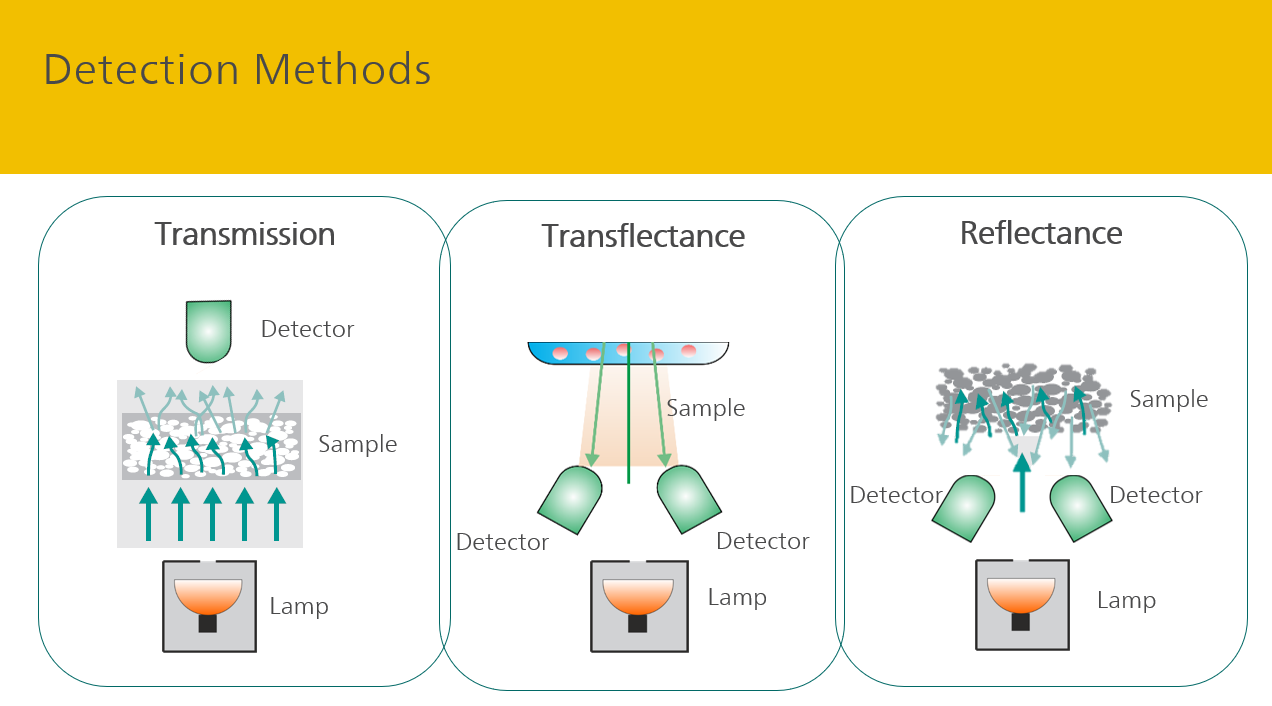

In Near-Infrared (NIR) spectroscopy, how the light interacts with a sample—and how that light is collected—defines the measurement approach. The three most common detection methods are transmission, transflectance, and reflectance. Each technique is suited to different types of samples and provides flexibility depending on the application.
Transmission measures the light that passes completely through a sample. A light source is positioned on one side, and a detector is placed on the opposite side to capture the transmitted light. This method works best for transparent or semi-transparent materials, such as liquids or thin solids. Because the light travels through the entire sample, transmission provides strong, direct information about composition and is often used for highly accurate quantitative analysis.
Transflectance is a hybrid technique that combines aspects of both transmission and reflectance. In this setup, light passes through the sample, reflects off a surface (or reflector), and then travels back through the sample to the detector. This effectively doubles the path length of the light, increasing sensitivity. Transflectance is commonly used for samples that are somewhat opaque or where a longer interaction path is beneficial, such as slurries or certain liquid applications.
Reflectance measures the light that is scattered and reflected directly from the surface of a sample. Both the light source and detector are positioned on the same side. This method is ideal for solid, opaque, or highly scattering materials like powders, grains, and tablets. While reflectance spectra can be more complex due to scattering effects, they are extremely valuable for rapid, non-destructive analysis with little to no sample preparation.
Together, these detection methods allow NIR spectroscopy to adapt to a wide range of sample types, making it a versatile tool for both laboratory and process environments.
